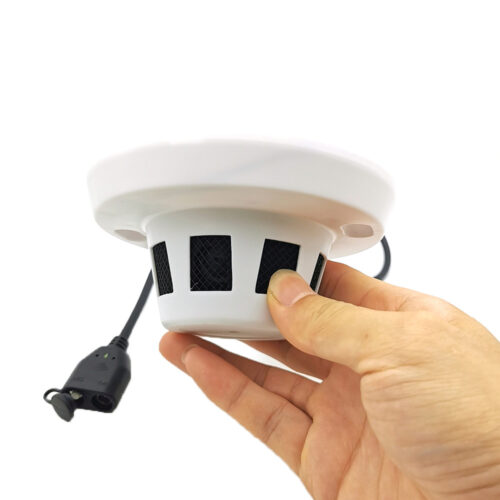

4G Smoke Detector Spy Camera

Description

4G Smoke Detector Spy Camera, best ceiling mounted cameras!

Camera

Operating system: Embedded Linux OS
Processor: T31N FOR 5MP /T21N For 2mp
Sensor: 1080P: 1/2.8″ SC2335 CMOS
5MP: 1/2.7″ SC5238 CMOS
Lens interface type: M12 Pinhole lens
Lens: 3.7mm lens default (2.8mm/6mm/2.5mm optional)
View angle: 92degree for 3.7mm pinhole lens
Min. illumination: 0.05lux/0lux (IR on)
Day & Night mode: N/A
Night vision distance: N/A

Video

Video compression: H.264 for 2mp ,h.265 for 5mp
Video streaming: Three streaming
Video resolution 5MP  2560×1920@15fps, 1920×1080@25fps

• First stream: 1080P (1920×1080), 720P (1280×720), Q720P (640×352)
• Second stream: Q720P (640×352), QQ720P (320×176)
• Third stream: QQ720P (320×176)

Video code rate 32~6144Kbps. supports constant bitrate/variable bitrate
Video frame rate: 2MP:20fps,5MP 15FPS
Image settings: Brightness, saturation, contrast, Sharpness, Exposure, flip, mirror
Image enhancement: Backlight compensation, Automatic white balance, Digital WDR, 3D digital noise reduction

Function

Motion detecting: Can set 4 independent detection region (1-100 sensitivity can be set)
Alarm linkage:

• alarm upload pictures and videos to the FTP server,
• alarm write pictures and videos to Micro SD card,
• alarm mobile phone message push

Privacy mask: maximum support 4 users to simultaneously browse
OSD: support camera name, date and time information superimposed
User management: Supports user and rights management
Simultaneous viewers: Maximum support 4 users to simultaneously browse
Network protocol: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP etc
Connection protocol: N/A

4G

4G standard: FDD-LTE
Frequency range: B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)
Transmission rate: Upload max: 50Mbps, download max: 150Mbps
Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

3G

3G standard: WCDMA
Frequency range: B1(2100MHz), B8(900MHz)
Transmission rate: Upload max:5.76Mbps, download max: 21Mbps
Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Interface

Power interface – 5.5mm power interface
Ethernet: N/A
TF card Slot   –  maximum support 128G TF card, can set the automatic capture and timer recording
Reset button  –  Support

General specification

Power supply  –   DC 12V 1A
power  – Day: 3W, Night: 8W
Operating temperature -20 to +60 degree
Operating humidity  –  10% to 95% (non-condensing)
Waterproof level    –  IP55 indoor use
Material   –  ABS+metal
Installation   – Rack mounting
